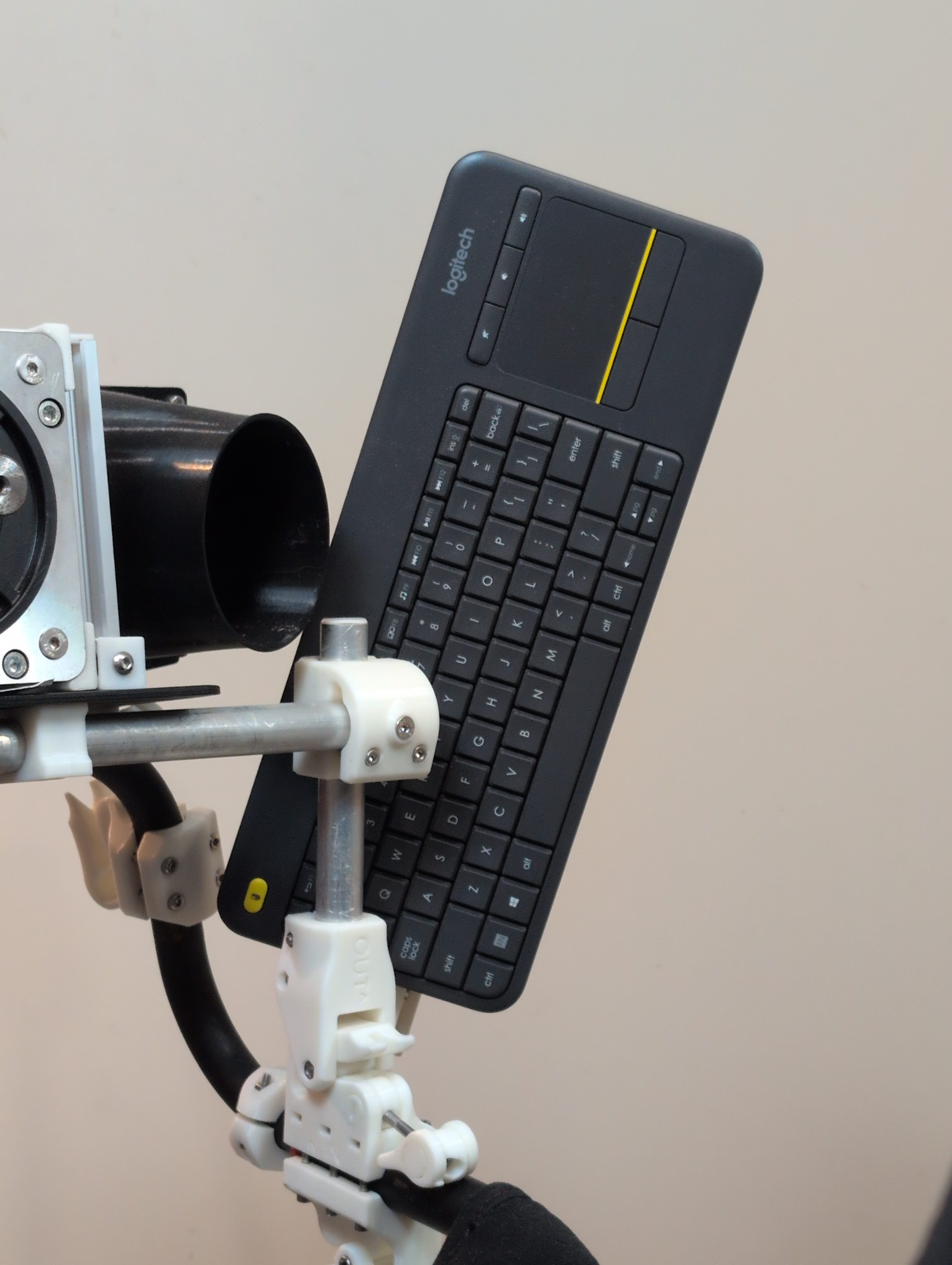

Playseat Challenge/X: Keyboard Mount

Description

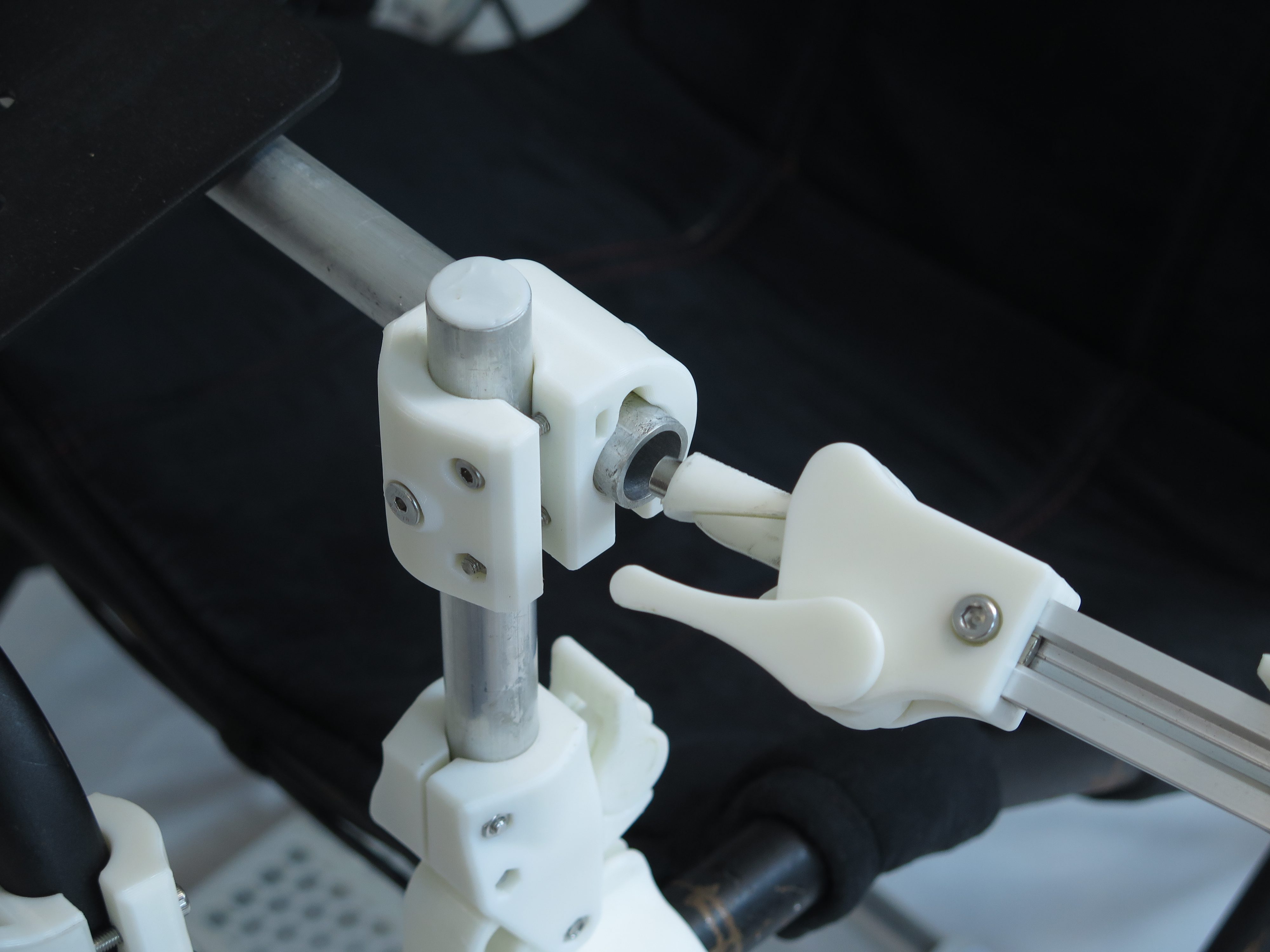

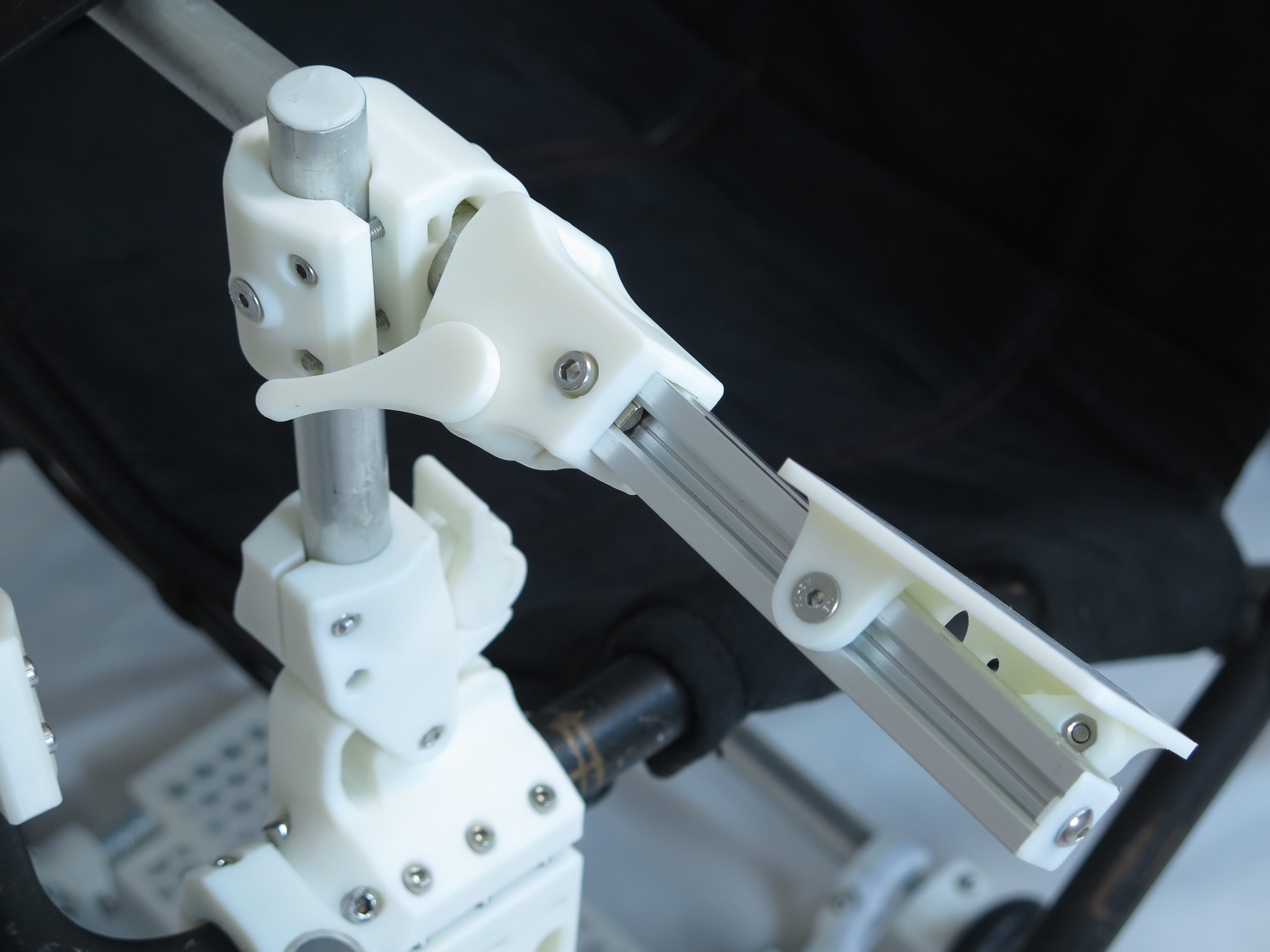

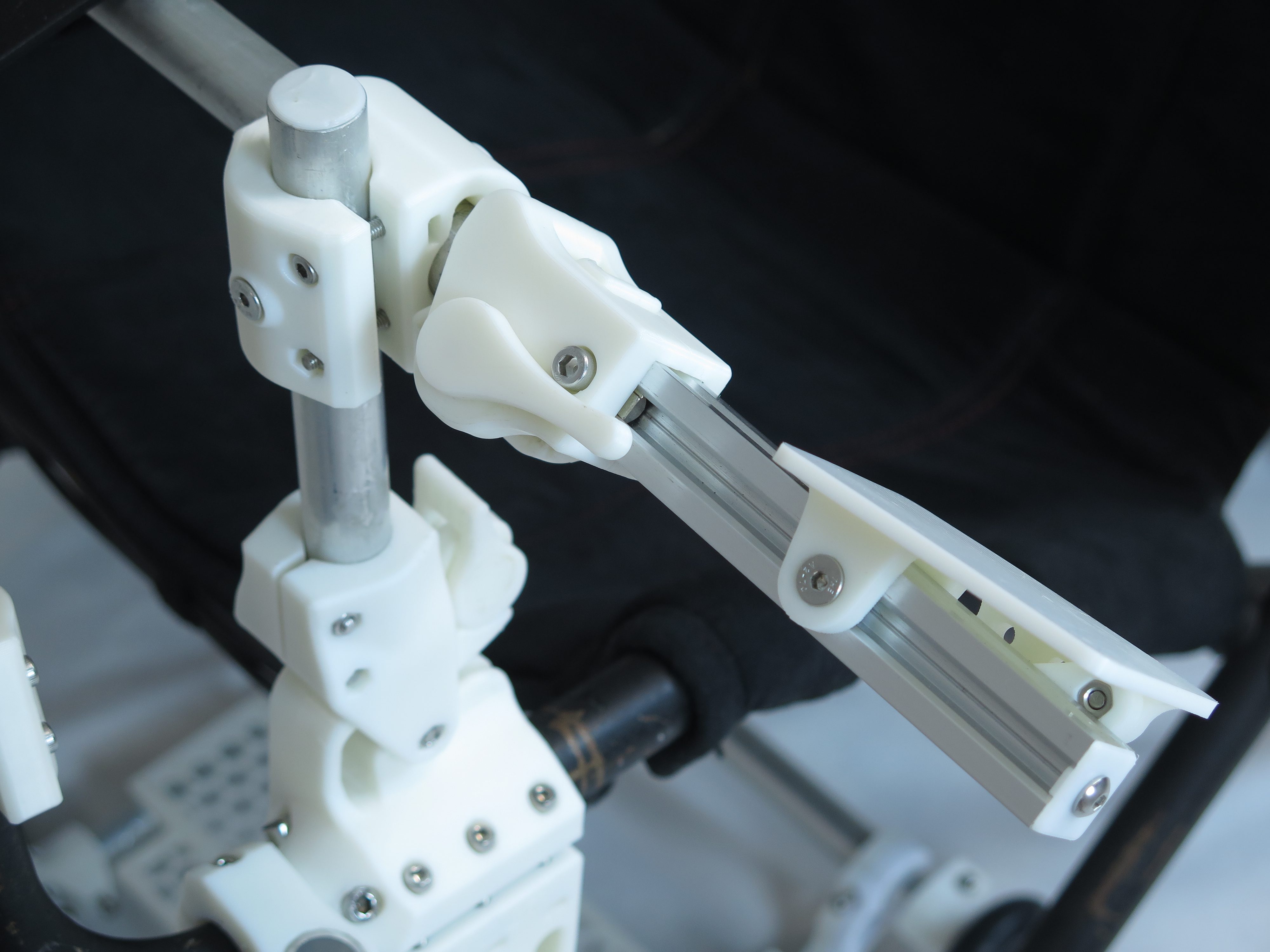

This keyboard mounting system is based on a versatile quick release system. With this mounting setup your attached peripheral can be quickly set up or packed away, adjusted to a wide range of positions, and easily detached to use on your lap inbetween racing sessions.

The aluminium profile backbone of the structure keeps sloppiness to a mimimum, and the adjustability will ensure you can find the optimal position for your setup.

Compatibility

This accessory is compatible with the Playseat Challenge and Playseat Challenge X. If used with the Lock-Mod or Lock-Mod X, the keyboard mount’s QR system can attach directly to the wheelbase reinforcement tubing. Without the Lock-Mod kit, additional mounting points need to be included to allow the keyboard to be attached to the Playseat frame.

The chosen peripheral needs to have a flat bottom surface which the double sided release tape can adhere to. Note that this mounting system is limited to keyboards, button boxes, and other light duty peripherals. Using this system to devices that require a high force to use (joysticks, shifters, etc) will risk damage to the QR mechanism and mounting plate.

Kit Contents

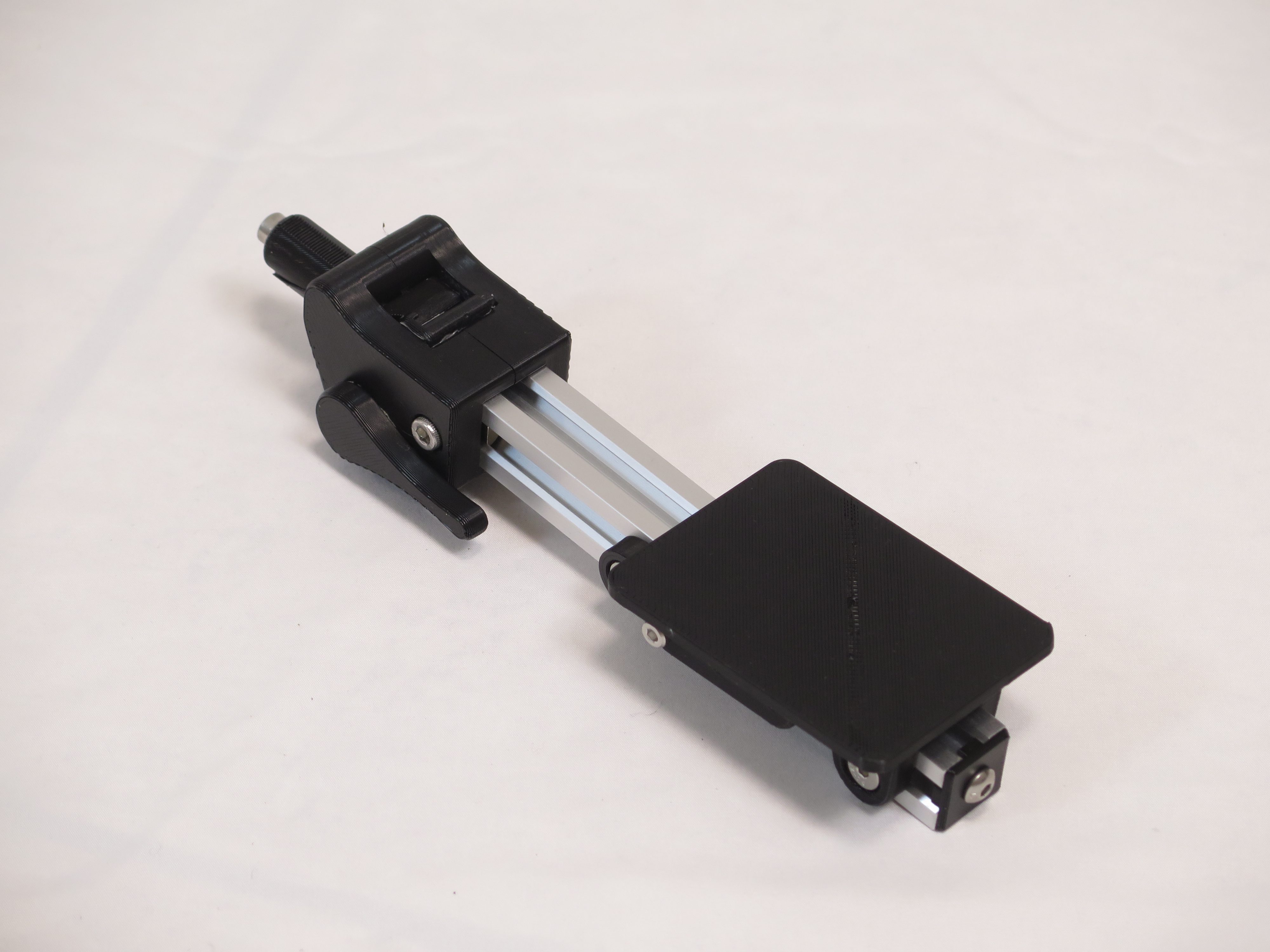

• Keyboard mount with QR system: Compatible with the Lock-Mod and Lock-Mod X. Interfaces with 20mm tubing of wheelbase reinforcement.
• 4 double sided tape tabs for attaching peripheral.

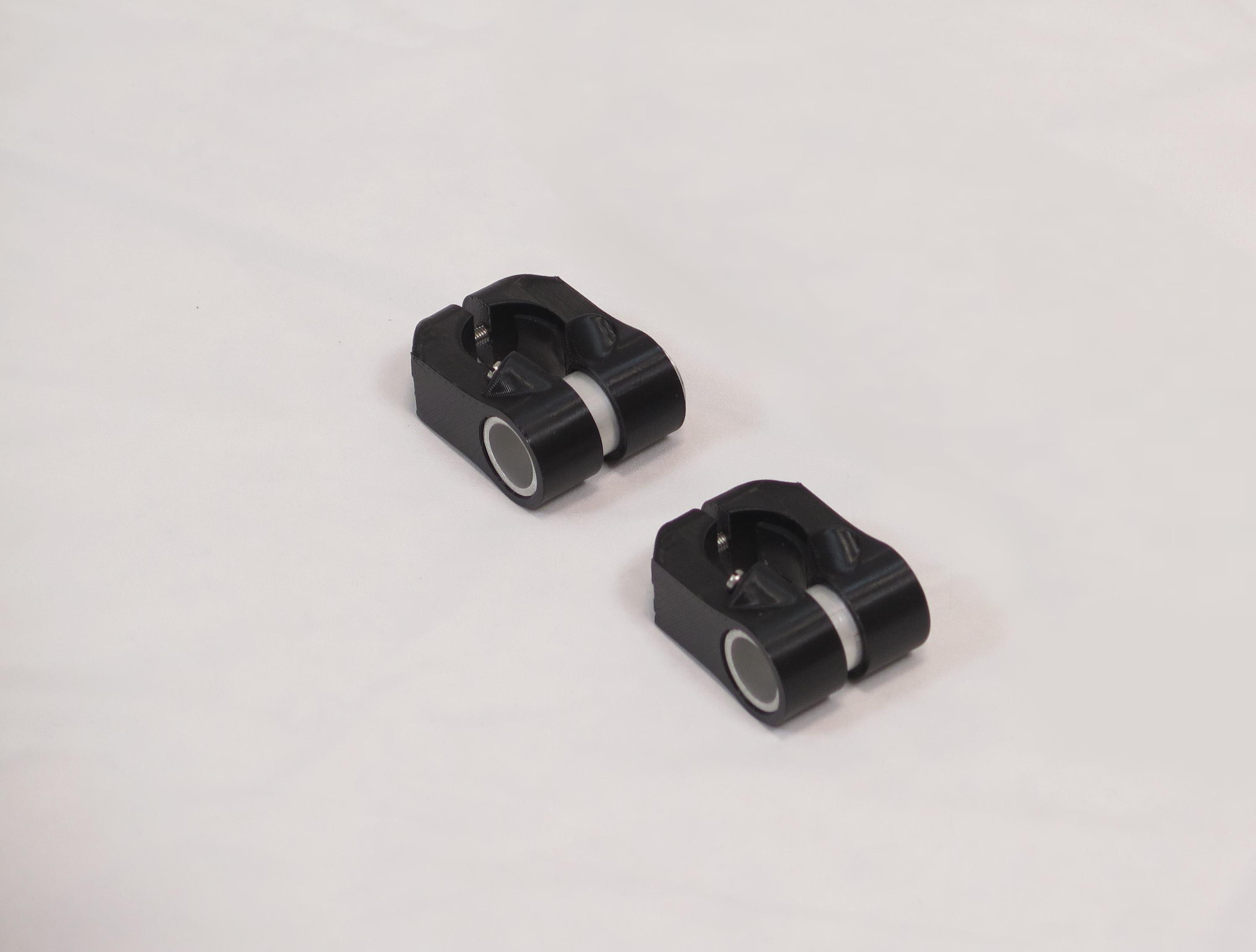

• (Optional Extra) Extra mounting points: If buying without Lock-Mod/Lock-Mod X, these are required. Minimum of 1 for mounting position when in use. 2 if you want to mount the keyboard in a stowed position on the Playseat Challenge/X when folded. Up to 3 for more mounting position options.

Find the installation manual here.

This is a mounting solution only. Keyboard will need to be purchased seperately.
